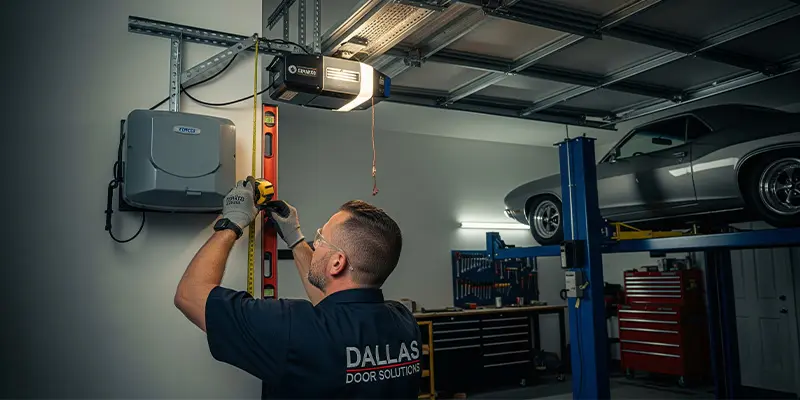

Technician installing a high-lift garage door track with a wall-mount opener in a Dallas garage
My Garage Door Repairman
  • clock

High-Lift and Vertical-Lift Garage Door Conversions in Dallas: Clear Ceiling Space for Storage and Car Lifts

Want overhead racks, brighter lighting, or room for a two-post car lift without changing your garage footprint High-lift and vertical-lift conversions reshape the track path so your door rises higher before turning horizontal. The result is more usable headroom, a cleaner look, and quieter operation when paired with a wall-mount opener. Here is the Dallas-focused guide to measurements, hardware, safety, costs, and when a conversion beats a full door replacement.

What a high-lift conversion actually does

A standard track turns horizontal just above the top of the door opening, usually stealing ceiling space where you would love to hang storage or lighting. A high-lift conversion raises that turn point by adding taller vertical tracks and different drums, so the door climbs higher along the wall before it moves overhead. A vertical-lift system goes farther and keeps the door moving up with no horizontal track at all, common in commercial settings or very tall garages.

Benefits you will notice

  • More overhead clearance for storage racks, lighting, or a car lift

  • Smoother, quieter travel when combined with a wall-mount opener

  • A tidier aesthetic with the door parked higher and out of the way

  • Better door balance when the correct springs and drums are specified

Measure first – headroom, sideroom, and backroom

Grab a tape, notebook, and level. These dimensions drive everything.

  • Headroom: From the top of the finished opening to the ceiling or lowest obstruction. High-lift needs more headroom than standard setups.

  • Sideroom: From the opening edge to the adjacent wall or obstruction on both sides. Wall-mount openers and spring pads need several inches of clear space.

  • Backroom: From the opening to the rear wall. Vertical-lift reduces backroom requirements, but plan for service access.

If your headroom is generous but sideroom is tight, we can still design around it with compact spring pads and careful hardware selection.

The hardware that changes in a high-lift conversion

A proper conversion is not just “longer tracks.” Several components are matched as a kit so the door stays balanced throughout travel.

  • High-lift tracks and brackets: Taller vertical tracks with a re-positioned curve.

  • High-lift or vertical-lift drums: Larger diameter drums change cable travel and torque.

  • Longer lift cables: Sized for the new drum and travel distance.

  • Re-rated torsion springs: New IPPT and cycle ratings matched to door weight and drum size.

  • Reinforcement struts and heavier hinges (as needed): Control panel flex on wide or windowed doors.

  • Wall-mount (jackshaft) opener: Side-mounted operator turns the torsion shaft directly and frees the ceiling.

For a deeper technical backdrop on drums, springs, and counterbalance behavior, manufacturers and the trade association maintain open references. See DASMA technical data sheets for industry standards and engineering guidance.

Wall-mount openers – the ideal partner

A wall-mount opener sits beside the torsion tube and drives the shaft, so there is no center rail to fight with high-lift tracks. Modern units add Wi-Fi, battery backup, soft start and stop, and optional camera modules. If a bedroom sits above the garage, the reduction in vibration is noticeable.

Explore opener options and installation details on our Garage Door Openers page. We specify horsepower, accessories, and safety hardware to match your door weight and lift style.

When vertical-lift makes sense

If you have very tall walls and want the door to stack high with zero horizontal track, vertical-lift is an option. It is common in commercial bays and some residential workshops. It requires more headroom, precise spring math, and usually a wall-mount opener. We will recommend it when the ceiling height justifies the added cost and complexity.

Safety – what pros check and why it matters

A door that looks balanced at the floor can go wildly out of balance mid-travel if the drums, cables, or springs are mismatched. That is why conversions are engineered as a set.

  • Cable line of action: Must stay true on the drum. Cross-winding is a failure risk.

  • Spring IPPT and cycle rating: We match torque to the new drum size, door weight, and lift.

  • Stop bolts and track fasteners: Taller tracks add leverage. Fastener schedules must be upgraded.

  • Photo-eyes and force settings: Recalibrated so safety reversal is reliable after the geometry change.

  • Clearances at the crown of travel: Confirm nothing scrapes joists, ducts, or lights at full open.

You can browse residential buying basics and door system options from a leading manufacturer to visualize track styles and design choices. Their Clopay buying guide is a helpful primer.

Noise, smoothness, and sealing

High-lift doors can run quieter because the opener is off to the side and there is no center rail amplifying vibration. To maximize the effect:

  • Upgrade to nylon rollers with ball bearings

  • Add proper reinforcement struts on wide or glass-lite sections

  • Lubricate hinges and bearings with a garage-rated product

  • Replace worn perimeter weatherstrip and bottom seal so the higher track layout still seals well

Costs – what drives the price in Dallas

While every garage is unique, these elements influence the final number:

  • Lift height gain: More lift and custom track work increase cost.

  • Door weight and construction: Heavy wood or double-wide glass doors need beefier hardware.

  • Openers and accessories: Wall-mount units with battery backup and camera cost more than basic operators.

  • Electrical and lighting: Adding a dedicated LED fixture where a ceiling opener used to be is a smart upgrade.

  • Repairs you are already due for: Springs near end-of-life, pitted rollers, or bent tracks are best addressed during the conversion.

We are happy to price a conversion against a full new door so you can compare ROI. If the panel skin is rusted through, oil-canned, or delaminated, a new insulated door plus high-lift hardware may deliver better long-term value.

Planning for car lifts and overhead storage

If you plan to install a two-post or four-post car lift, measure vertical clearances carefully.

  • Vehicle height on the lift plus lift post height plus a safety buffer

  • Door crown height at full open after conversion

  • Garage door opener placement and any overhead sprinklers or beams

A high-lift conversion often unlocks enough space for a popular home lift while keeping daily garage use hassle free.

Lighting and ventilation upgrades

Freeing the center ceiling puts lights where you actually need them. We often add:

  • A wide LED panel down the centerline

  • A motion sensor near the entry door

  • A quiet ceiling fan for Texas summers

These touches make the garage feel like a usable room rather than a dim storage bay.

Wi-Fi, access control, and cameras

Wall-mount openers with Wi-Fi let you monitor the door, set schedules, and share digital access with family or contractors. If you want full video coverage, we can integrate a door-mounted camera module or point an existing garage camera at the threshold for delivery verification.

Maintenance – keep the new system dialed in

  • Quarterly lubrication of hinges and rollers

  • Monthly safety reversal test with a 2×4 laid flat under the door

  • Sensor cleaning and alignment after big temperature swings or if the door reverses unexpectedly

  • Torque check on track and bracket fasteners annually due to added leverage on tall verticals

Common pitfalls and how we avoid them

  • Under-springing or over-springing: Causes drift mid-travel. We calculate spring torque to the new drum and confirm balance at multiple door positions.

  • Reusing worn cables: Old cables can bird-cage on larger drums. We install the correct length and rating.

  • Ignoring panel stiffness: Wide doors with glass need struts to stop flex and paint cracking.

  • Leaving the old ceiling opener in place: A wall-mount opener is the right solution for high-lift geometry.

When a full replacement beats conversion

Choose a new door instead of converting when:

  • The skin is perforated with rust or the stile rails are loose

  • Panels are badly kinked from prior impacts

  • You want a totally different look, insulation level, or window layout

In those cases, we will specify a new door with the high-lift track from the factory and pair it with a wall-mount opener for the cleanest result. If that is your goal, start here: Garage Door Installation.

Your Dallas high-lift plan – next steps

  1. We measure headroom, sideroom, and backroom, then inspect springs, hinges, and panel stiffness.

  2. You pick opener features, lighting upgrades, and how much lift you want to gain.

  3. We build a parts list with matched drums, springs, tracks, cables, and fasteners.

  4. Installation, calibration, and safety testing wrap in a single visit for most homes.

  5. You enjoy a quieter door and a ceiling that finally works for storage or a lift.

Ready to reclaim your ceiling space Our team designs and installs high-lift and vertical-lift systems across Dallas every week. We will engineer the conversion, set up your wall-mount opener, and leave you with a balanced, smooth door that feels brand new.
